Semiconductor and Electronics

Showing 145–168 of 187 results

Scia Systems – Magnetron Sputtering Systems – scia Magna 200 and scia Multi 680
The scia Magna 200 uses a unique Double Ring Magnetron architecture to achieve very high homogeneity of coatings at impressively high deposition rates. Typical applications include piezoelectric layers, optical coatings and passivation layers.
…

The scia Magna 200 uses a unique Double Ring Magnetron architecture to achieve very high homogeneity of coatings at impressively high deposition rates. Typical applications include piezoelectric layers, optical coatings and passivation layers.

The scia Multi 680 is designed for periodic multilayer coatings for substrates up to 650 mm dia. and 50 kg. Typical applications are gradient multilayer coatings of mirrors for soft X‑ray and anti-reflective coatings in UV and X‑ray applications.

Learn More
Scia Systems – PEVCD/RIE Systems – scia Batch 350
The scia Batch 350 is designed for homogeneous coating of several 3‑dimensional shaped substrates in one batch. Typical applications are biocompatible films for medical objects.

The scia Batch 350 is designed for homogeneous coating of several 3‑dimensional shaped substrates in one batch. Typical applications are biocompatible films for medical objects.

Learn More
Scia Systems – PEVCD/RIE Systems – scia Cube 300/750
The scia Cube 300/750 are designed for large area high density plasma processes of substrates up to 300 mm x 200 mm (scia Coat 300) and up to 750 mm x 750 mm (scia Coat 750). Typical applications are deposition of Diamond Like Carbon (DLC) for o…

The scia Cube 300/750 are designed for large area high density plasma processes of substrates up to 300 mm x 200 mm (scia Coat 300) and up to 750 mm x 750 mm (scia Coat 750). Typical applications are deposition of Diamond Like Carbon (DLC) for optical filters and dielectric films for anti-reflective coatings as well as etching processes with oxygen or halogen chemistry for the structuring of Semiconductors and metals.

Learn More
SEO – Phoenix (Portable)
The Phoenix series is designed to offer the flexibility required for QA. R&D and engineering process development. The Phoenix is a quite simple and virtually any measure size without sample cutting sample cutting preparatio…
The Phoenix series is designed to offer the flexibility required for QA. R&D and engineering process development. The Phoenix is a quite simple and virtually any measure size without sample cutting sample cutting preparation. Light-weight means simple control device and simple handling. Phoenix adopted USB type camera. Easily connect to laptop and desktop computer with Surfaceware software.

Key Features
- Software working on Windows 7/8/10 32bit
- Preview function for rapidly capture image
- Contact angle measurement range: 3- 180°
- No required cutting sample
- Data export to Microsoft Excel
- Available to connect to notebook or desktop PC via USB port
- Analysis of plasma treatment to increase the wettability of polymers surfaces
- Adsorption / Wettability of powder and pharmaceutical products
Learn More
SEO – Phoenix MT
Phoenix MT is the world’s first model that can be used by turning the equipment, the individual modules can be separated, and the length of each main frame can be selected to change the model to suit almost all samples.
Phoenix MT is the world’s first model that can be used by turning the equipment, the individual modules can be separated, and the length of each main frame can be selected to change the model to suit almost all samples.

Key Features

Total flexibility: Easy to upgrade ( Manual → Auto One Drop → Multi syringes ) by modular design main frame

Automation : Automatic measurement progress at once

User friendly : Easy to transform for changed sample types

Tool Free changeover: Additional tools are not required for modular change

Changeable module position : According to sample nature, module can be change to cater for diverse sample nature/ form factor

Data output : Data can be exported as Excel file, offering the highest flexibility for further data processing
Learn More
SET – ACCµRA M
The ACCµRA M is a manual flip-chip bonder that allows ± 3 µm accuracy. This equipment permits to align manually the components with a high level of precision. The motorized arm controls precisely the bonding force. Combining and synchronizing t…

The ACCµRA M is a manual flip-chip bonder that allows ± 3 µm accuracy. This equipment permits to align manually the components with a high level of precision. The motorized arm controls precisely the bonding force. Combining and synchronizing the arm with the temperature controller, it guarantees a perfect quality and high repeatability of your process.

Learn More
SET – ACCµRA OPTO
The ACCµRA OPTO is a flip-chip bonder that allows ± 0.5 µm accuracy. It is dedicated to low force and reflow processes.

The ACCµRA OPTO is a flip-chip bonder that allows ± 0.5 µm accuracy. It is dedicated to low force and reflow processes.

Learn More
SET – ACCµRA Plus
ACCµRA Plus is a flip-chip bonder designed for ± 0.5 µm accuracy in full automatic mode. It is suitable for reflow and thermocompression processes.

ACCµRA Plus is a flip-chip bonder designed for ± 0.5 µm accuracy in full automatic mode. It is suitable for reflow and thermocompression processes.

Learn More

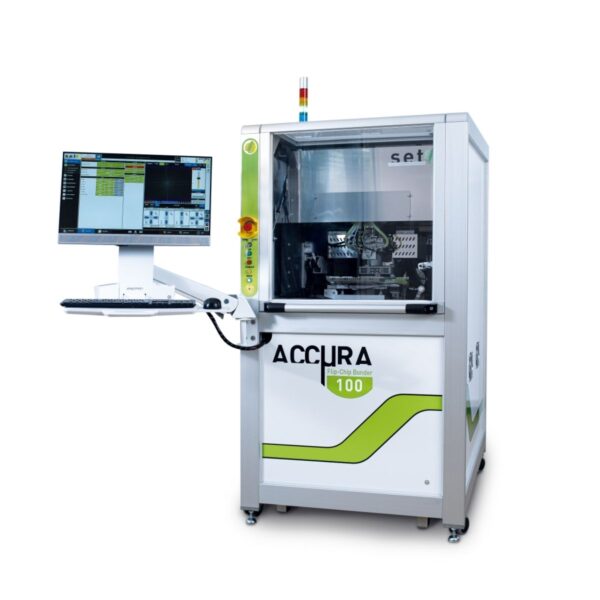

SET – ACCµRA100
The ACCµRA100 is a flip-chip bonder that allows ± 0.5 µm accuracy. Motorized axes guarantee a high repeatability of your process. Its flexibility makes it ideal for developing a wide range of applications. ACCµRA100 combines…

The ACCµRA100 is a flip-chip bonder that allows ± 0.5 µm accuracy. Motorized axes guarantee a high repeatability of your process. Its flexibility makes it ideal for developing a wide range of applications. ACCµRA100 combines high precision, accessibility and cost-effectiveness.

Learn More
SET – FC150
The FC150 is an accurate and very flexible flip-chip bonder for Chip-to-Chip (up to 100 mm) and Chip-to-Wafer (up to 200 mm) applications on the same open platform.

The FC150 is an accurate and very flexible flip-chip bonder for Chip-to-Chip (up to 100 mm) and Chip-to-Wafer (up to 200 mm) applications on the same open platform.

Learn More

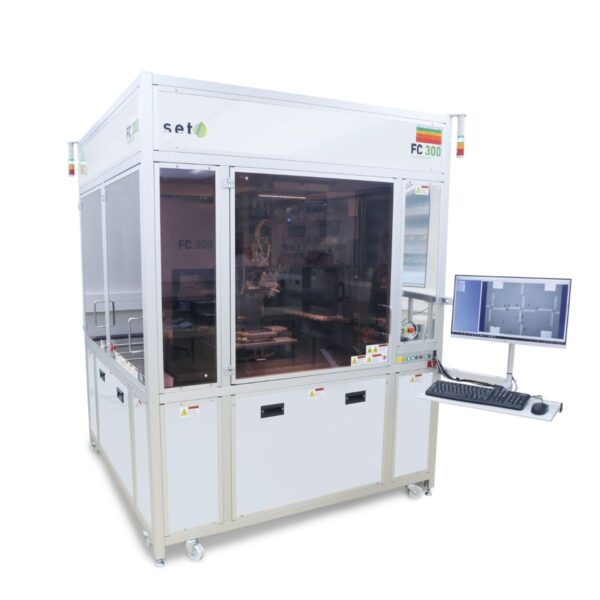

SET – FC300
The FC300 is a high accuracy and high force flip-chip bonder for Chip-to-Chip (up to 100 mm) and Chip-to-Wafer (up to 300 mm) applications. FC300 covers a large range of bonding forces, from 1 to 4000N. That makes it perfectly suitable for reflow …

The FC300 is a high accuracy and high force flip-chip bonder for Chip-to-Chip (up to 100 mm) and Chip-to-Wafer (up to 300 mm) applications. FC300 covers a large range of bonding forces, from 1 to 4000N. That makes it perfectly suitable for reflow and thermocompression processes.

Learn More
SET – LDP150
The LDP150 is an electrical Press especially designed for bonding large light or radiation detectors (50 ~ 150mm). It uses compression process at room temperature (thermo-compression option available).

The LDP150 is an electrical Press especially designed for bonding large light or radiation detectors (50 ~ 150mm). It uses compression process at room temperature (thermo-compression option available).

Learn More
SET – NEO HB
NEO HB is a flip-chip bonder designed for ± 1 µm @ 3σ accuracy in stand-alone or full automatic mode (EFEM). It is suitable for Hybrid/Direct bonding processes. NEO HB combines high precision, flexibility and short cycle time.

NEO HB is a flip-chip bonder designed for ± 1 µm @ 3σ accuracy in stand-alone or full automatic mode (EFEM). It is suitable for Hybrid/Direct bonding processes. NEO HB combines high precision, flexibility and short cycle time.

Learn More
SET – NPS300
Optimized for the production of nanostructures, the Nano imPrinting stepper Stepper NPS300 is the first ever tool able to combine Hot Embossing and UV-NIL on a same platform. The NPS300 is able to print sub-20 nm geometries with …

Optimized for the production of nanostructures, the Nano imPrinting stepper Stepper NPS300 is the first ever tool able to combine Hot Embossing and UV-NIL on a same platform. The NPS300 is able to print sub-20 nm geometries with an overlay accuracy of 250 nm, when in-situ alignment is performed.

Learn More
SMT – Full Convection Reflow Soldering Systems
The reflow soldering systems from SMT Wertheim stand for maximum efficiency and high product throughput with stable soldering quality.

The reflow soldering systems from SMT Wertheim stand for maximum efficiency and high product throughput with stable soldering quality.

Learn More
Solarius – AOP
The AOP platform is the most flexible and modular Solarius solution for all kinds of customized measurement tasks. Depending on the indivisual task, it can be equipped with different 3D measuring sensors out the entire available…

The AOP platform is the most flexible and modular Solarius solution for all kinds of customized measurement tasks. Depending on the indivisual task, it can be equipped with different 3D measuring sensors out the entire available technology portfolio, many sizes of motion systems and customized software. Its flexibility supports a wide variety of applications and working environments and can be tailored to meet each customer’s requirements.

Learn More
Solarius – Atlas

The new Polaris Desktop 3D surface measuring system from Solarius enables highly accurate and precise 3D imaging of surfaces. While th…

The new Polaris Desktop 3D surface measuring system from Solarius enables highly accurate and precise 3D imaging of surfaces. While the Polaris and the Polaris Plus are equal in accuracy and precision, the Polaris offers a cost effective variant for many applications. The Polaris Plus expands the scope of application due to its extensive equipment, which supports in particular simple automation of the measurement tasks.

Learn More
Solarius – Polaris
The new Polaris Desktop 3D surface measuring system from Solarius enables highly accurate and precise 3D imaging of surfaces. While the Polaris and the Polaris Plus are equal in accuracy and precision, the Polaris offers a cost …

The new Polaris Desktop 3D surface measuring system from Solarius enables highly accurate and precise 3D imaging of surfaces. While the Polaris and the Polaris Plus are equal in accuracy and precision, the Polaris offers a cost effective variant for many applications. The Polaris Plus expands the scope of application due to its extensive equipment, which supports in particular simple automation of the measurement tasks.

Learn More
Solarius – Viking
The Viking is an optical non-contact profilometer for affordable 3D surface and roughness measurements. Its small footprint and light weight design makes it ideal as a desktop 3D measurement tool. It is designed to meet mid-rang…

The Viking is an optical non-contact profilometer for affordable 3D surface and roughness measurements. Its small footprint and light weight design makes it ideal as a desktop 3D measurement tool. It is designed to meet mid-range accuracy and quality control needs using state-of-the-art sensor technology to generate 3D surface topography maps and ISO compliant roughness information.

Learn More
Surfx – Argon Plasma Systems
The Atomflo^TM600 argon plasma system is ideally suited for in-line cleaning and activation of materials prior to bonding. The plasma produces a beam of reactive atoms that etch away contaminants on the surface all the way down to the…

The Atomflo^TM600 argon plasma system is ideally suited for in-line cleaning and activation of materials prior to bonding. The plasma produces a beam of reactive atoms that etch away contaminants on the surface all the way down to the atomic scale. .

Learn More

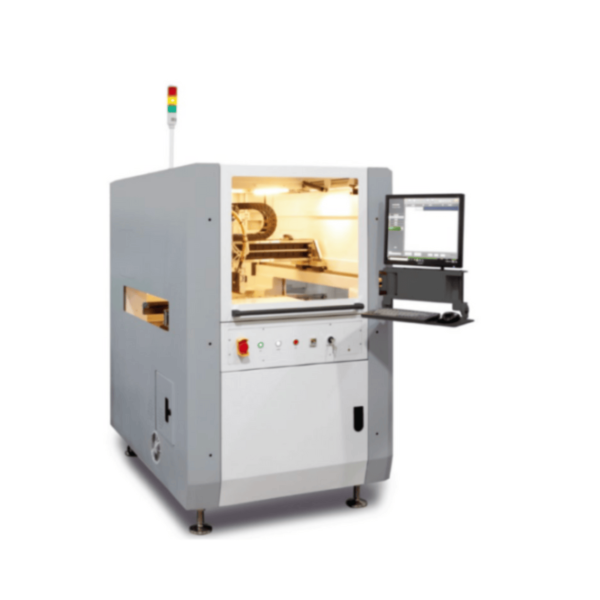

Surfx – Automation and Integration
Surfx provides turnkey and OEM plasma systems for surface treatment of just about any part, regardless of size, shape, or production quantity. We proudly supply the most trusted atmospheric plasma machines to industries all ov…

Surfx provides turnkey and OEM plasma systems for surface treatment of just about any part, regardless of size, shape, or production quantity. We proudly supply the most trusted atmospheric plasma machines to industries all over the world.

Learn More

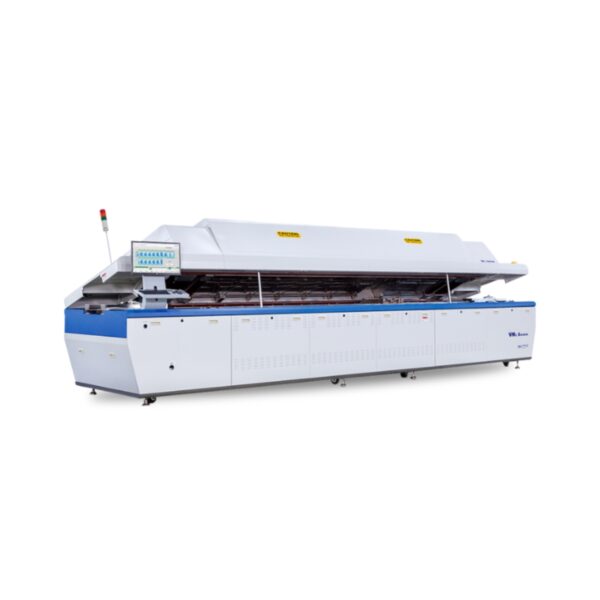

TSM – Air Reflow
The TRA series is the outcome of realizing Econology and offers the best performance. Satisfying the economic effectiveness and practicality of your business.

The TRA series is the outcome of realizing Econology and offers the best performance. Satisfying the economic effectiveness and practicality of your business.

Learn More
TSM – N2 Reflow (TRN III-a)
The TSM N2 Reflow is a high-end reflow oven that provides precise temperature control for the most demanding soldering applications. It features a nitrogen atmosphere that minimizes oxidation and improves soldering quality, ensuring consistent and…
The TSM N2 Reflow is a high-end reflow oven that provides precise temperature control for the most demanding soldering applications. It features a nitrogen atmosphere that minimizes oxidation and improves soldering quality, ensuring consistent and reliable results. With a compact design and intuitive user interface, the TSM N2 Reflow is a must-have for any electronics manufacturing facility looking to achieve the highest levels of quality and efficiency.

Key Features
- Realize Flux Zero in OVEN -> equip FMS applied with patent technology
- Thermal Interference Innovation in each zone -> Able to set up temperature difference with 60ºC in max. of interzone
- Internal Heat Reduction of Reflow -> apply New Emission System
- Real-time Monitoring,temperature Profile Monitoring and Oxygen Concentration Monitoring in each zone
- Conveyor Vibration Monitoring
Learn More
TSM – Vacuum Reflow
The TRV series offers the outstanding productivity and safety operation of equipment. Particularly , the Compact Vacuum Chamber and Conveyor are technically proved solutions in the field through a technical partnership with ETC….

The TRV series offers the outstanding productivity and safety operation of equipment. Particularly , the Compact Vacuum Chamber and Conveyor are technically proved solutions in the field through a technical partnership with ETC.

Learn More
